ARLON® Water Resistant Substrate Helps Prevent Snow and Ice Buildup in Doorways
当气温骤降大雪覆盖，列车常面临低温带来的正常运行挑战。其中一个比较严重的问题就是由于恶劣天气造成的列车车门故障。

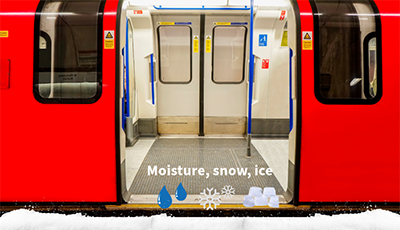

Exposed to moisture, snow, and ice, these doors are at risk of freezing, which can lead to operational disruptions and safety concerns.
So, what’s the secret behind keeping train doors functioning flawlessly even in the coldest weather?

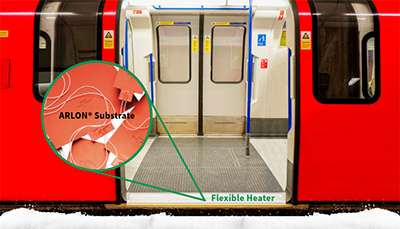

The answer lies in the integration of a flexible heater with a waterproof substrate that conforms to the door’s shape. This design ensures even heat distribution while preventing moisture ingress, effectively stopping snow and ice buildup in the harshest winter conditions.
Material Design Considerations
When designing for extreme winter conditions, engineers must prioritize materials that offer:
- Flexibility – Conforms to the unique shapes of doorways.
- Water and Environmental Resistance – Withstands exposure to moisture and harsh conditions.
- Durability – Provides long-lasting performance in rugged environments.
- UL Certification – Meets critical safety and flammability standards.
- Heat Transfer Efficiency – Ensures effective and consistent warming.
- Thermal Stability – Performs reliably across a wide temperature range.
罗杰斯解决方案
一家列车制造商决定在其列车的门廊内使用罗杰斯公司的 ARLON® 硅胶防水基材制造的柔性加热器。The substrate was chosen for its exceptional waterproof properties, which reduces the risk of circuit failure due to moisture ingress.
ARLON Substrate Material Composition and Benefits:
- Silicone and PTFE Construction – The substrate features silicone bonded to a PTFE film, providing an impermeable barrier against water.
- High Heat Transfer and Durability – Delivers efficient thermal conductivity and withstands extreme conditions.
- Wide Temperature Range – Thermally stable from -58 to 232°C (-72 to 450°F), delivering reliable performance in varying climates.
- Dual-Sided Surface – One side cured, the other uncured, allowing for easy bonding to metal surfaces in train doorways.
- UL Certification – Complies with UL 94 HB and V-0 standards, with RTI ratings up to 220°C, meeting stringent transportation safety requirements.
成果
ARLON 硅胶防水基材具有出色的防水性能，符合制造商的所有规格要求。As a result, their trains operate smoothly and safely for all passengers, even in the harshest weather conditions.
